Multibend Series

Multibend Series Highlights

Typical Wire Form Diameter Range Ø:
1.0MM to 10.0MM.

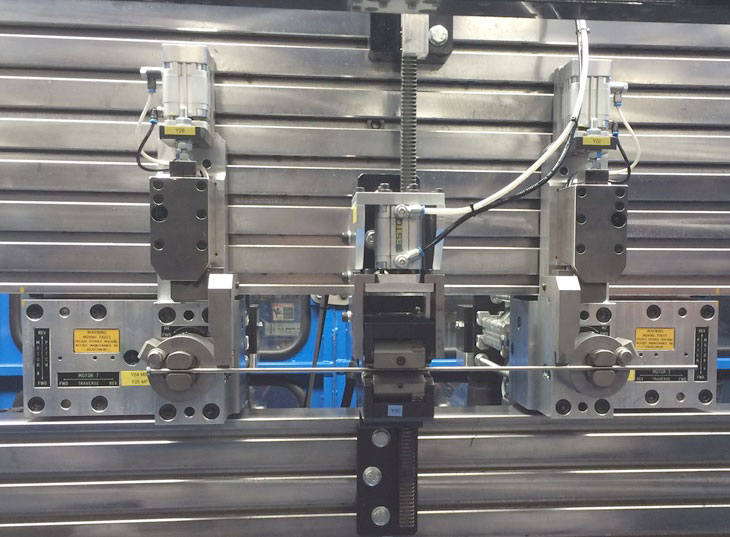

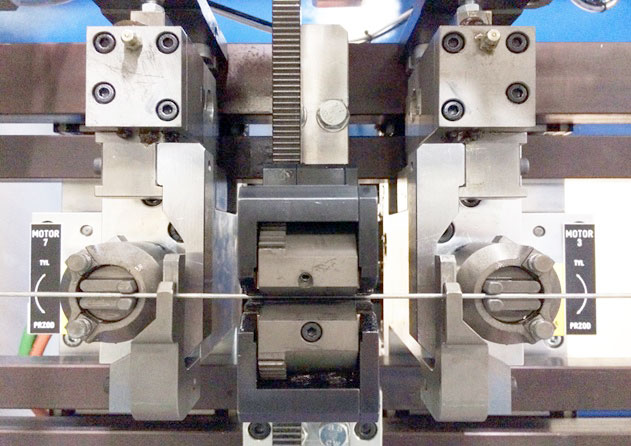

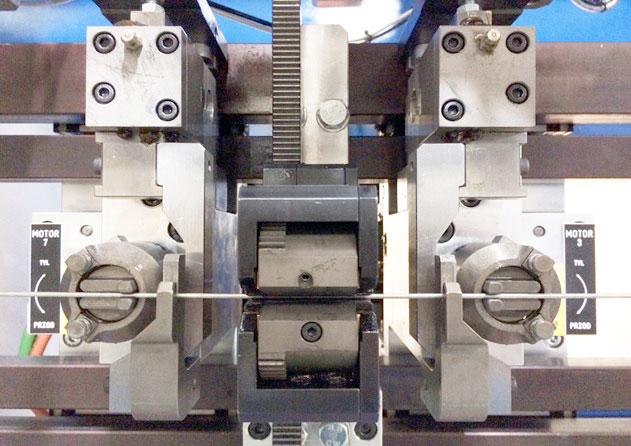

Wire Bending Tooling Heads:

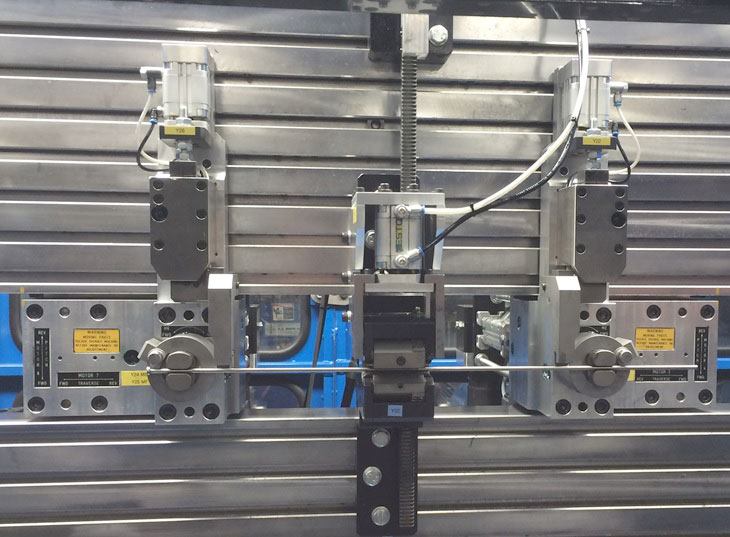

Presently; the TBE Multibend Series is available in a Dual Head and Three Head configuration.

Sectors:

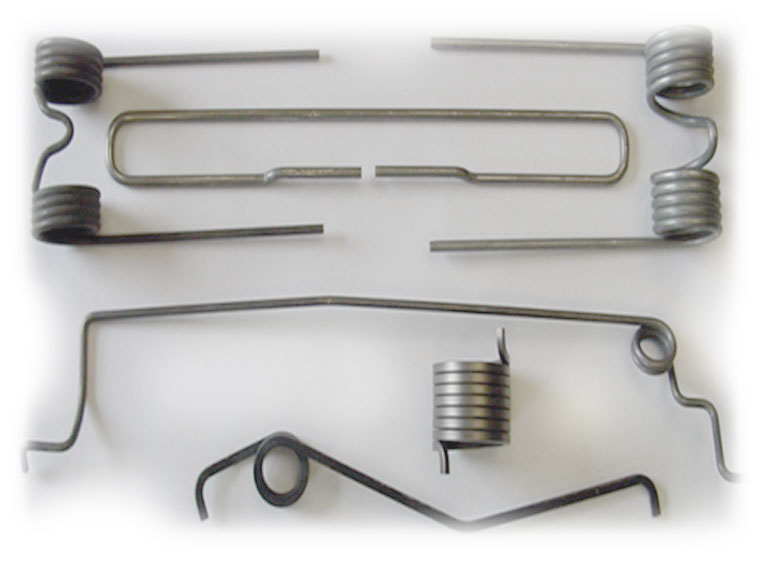

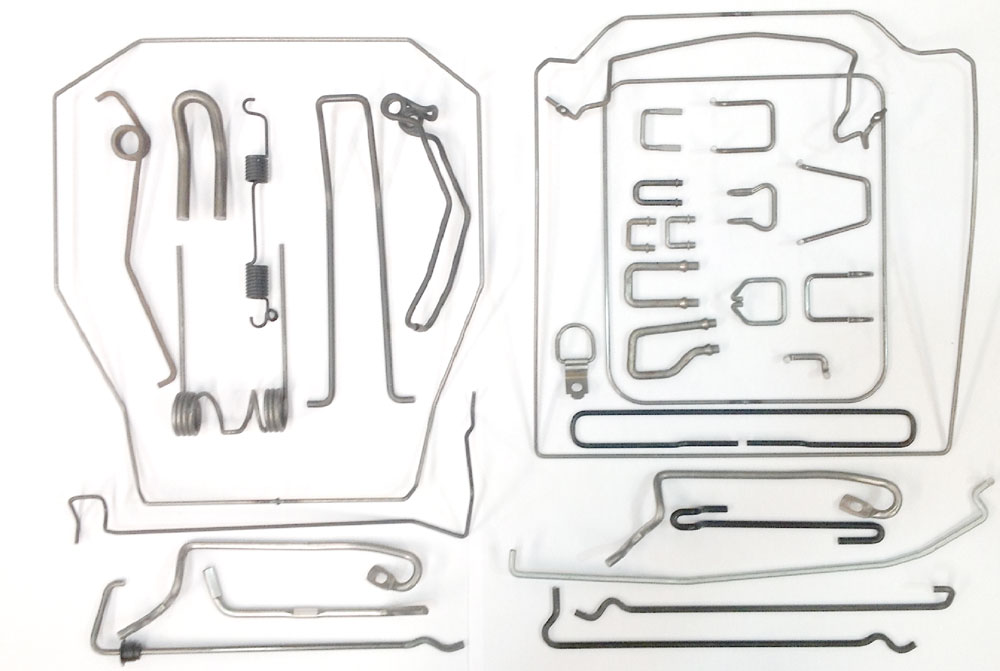

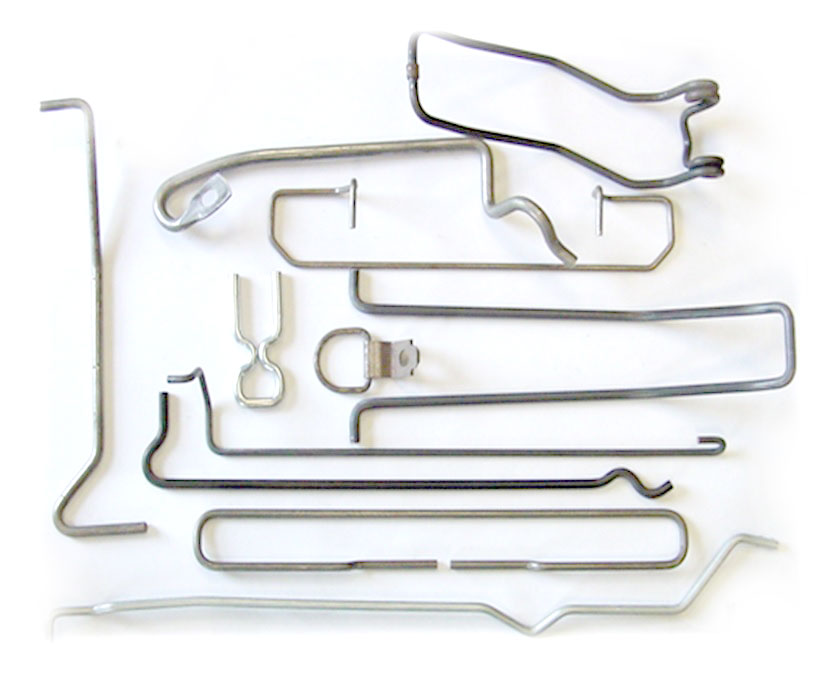

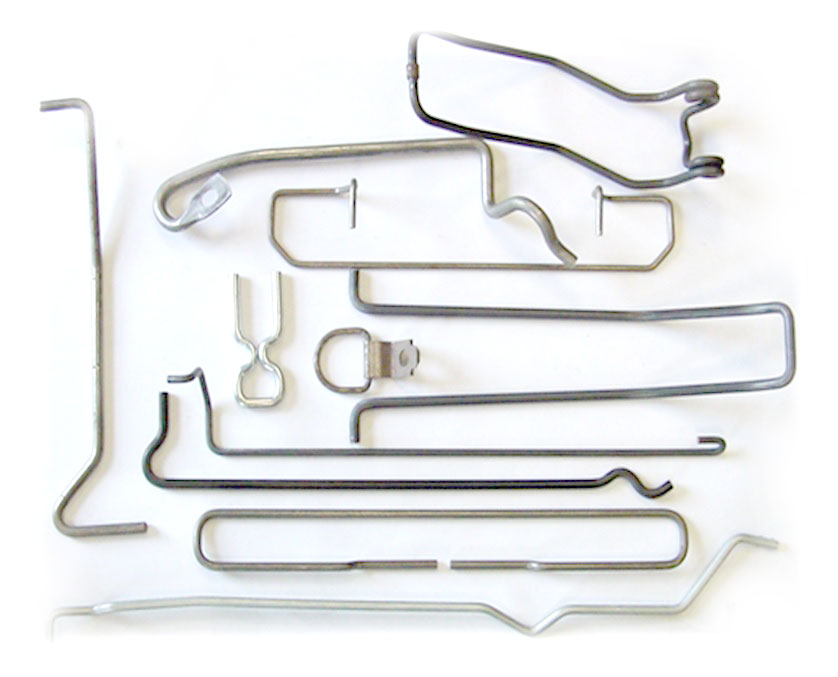

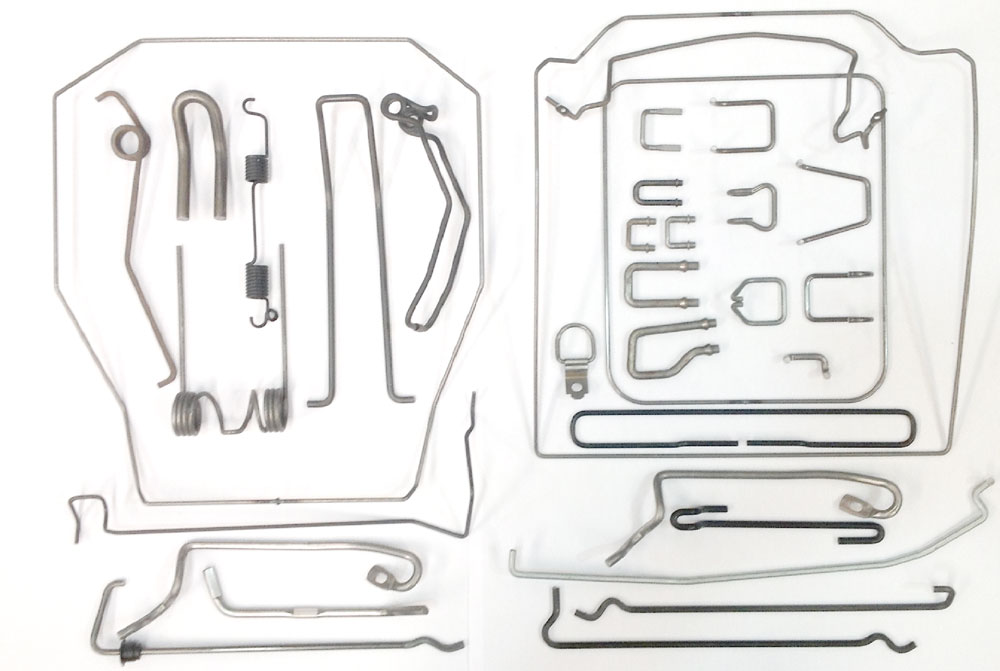

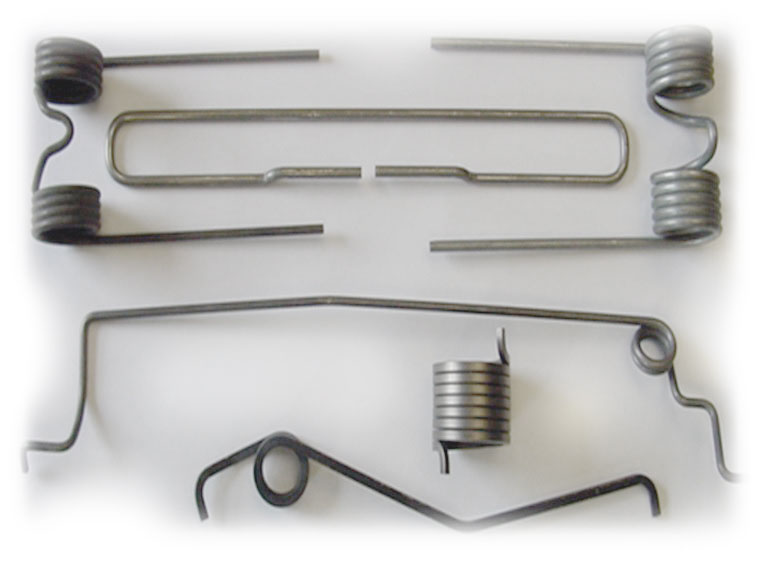

Most suitable for the production of Automotive Wire Forms; however the Multibend Series has capability for production of components across all sectors.

Variants:
TBE Multibend High Speed (HS) Series and TBE Multibend Three Head Series.
Enquire

TBE Multibend Series

Launched in 2007-2008, the TBE Multibend Series has revolutionized the production of high volume complex wire forms with an industry leading flexible tooling concept.

Key Characteristics

  • 8 Servo Axes Standard – Optional up to 24 Axes
  • On-Board Program Storage
  • Independent Eyelet Station
  • Pitch Control on Bending Heads
  • Servo Index Unit For 3-D Rotation
  • Automatic Component Rotation for Multi Plane Bends
  • Modular Tooling – Rapid Change Over Times
  • Integrated Decoiler
  • Full Diagnostic and Fail Safe Systems
  • Touch Screen Programming Controls – Allen-Bradley®

Optional Additions

  • Combined Straightening System: 2– Axis Synchronised Spinner Straightener
  • Extended – ‘EXL’ Series – TBE 30 Multibend; for the production of ultra-long developed length Wire Forms
  • Conveyor System for packing Wire Forms
  • Simultaneous Production of two or more Wire Forms
  • Double Torsion Coiler
  • Welded Assemblies
  • Feeder Encoder System
