Rapidform Series Highlights

Typical Wire Form Diameter Range Ø:
1.0MM to 6.5MM.

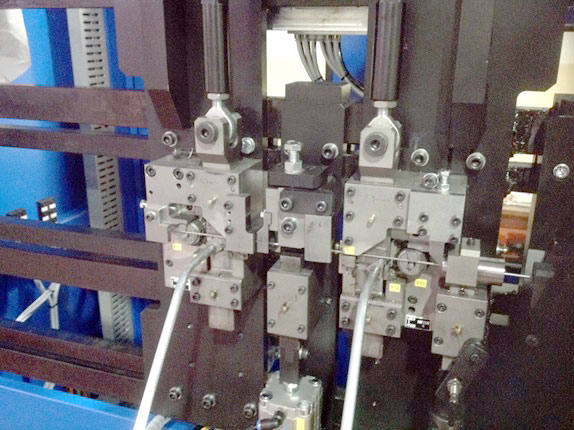

Wire Bending Tooling Heads:
Variable – as required.

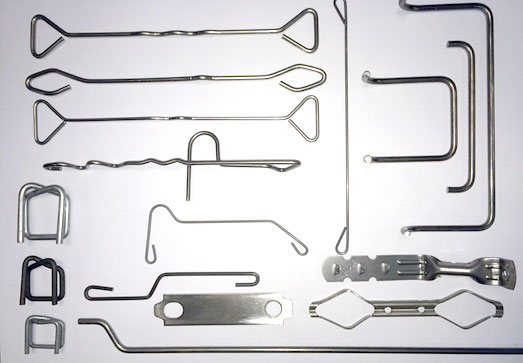

Suitable for the production of Wire Forms across all sectors.

Not Applicable.

TBE Rapidform Series

Launched in 2015, the TBE Rapidform Series represents an industry leading development for the exceptionally rapid production of ultra-high volume component products.

Key Characteristics

  • 8 Servo Axes Standard – Optional up to 12 Axes
  • On-Board Program Storage
  • Pitch Control on Bending Heads
  • Servo Index Unit For 3-D Rotation – Where Required
  • Integrated Decoiler
  • Full Diagnostic and Fail Safe Systems
  • Low Cost Tooling Solution – Rapid Changeover Times
  • Touch Screen Programming Controls – Allen-Bradley®
  • Virtual Cam Based Software – ‘TBE Systems’

Optional Additions

  • Conveyor System for packing Wire Forms
  • Simultaneous Production of two or more Wire Forms
  • Feeder Encoder System
  • Strip Feeder
  • Press Station – Up to 25 Tonnes
